The Array AOC7 is an integrated workstation for DICOM image data, developed with the concept of “beautiful and comfortable operation.”
It offers a wide range of features within a simple and elegant UI, including a convenient local database, an easy-to-use viewer, extensive DICOM services, flexible DICOM data editing functions, and video conversion capabilities.
It also includes robust security features such as user authentication and anonymization/encryption when creating CDs/DVDs. The Array AOC7 also serves as a gateway that connects PACS with the outside world, functioning as an “international terminal.” It offers numerous capabilities, including converting video files to DICOM multi-frame images, quickly importing images from CDs/DVDs or films into PACS, and creating IHE PDI-compliant CDs/DVDs from selected PACS images.
With the Array AOC7, you can manage DICOM image data, import video files, CDs, and film images from outside into PACS, and write PACS images to CDs or DVDs for distribution.

Mutual conversion between general video and DICOM is now possible.

Convert general video files to DICOM files and vice versa.
Send healthcare videos in general video formats to the server, and output healthcare videos in DICOM format as general video, greatly enhancing convenience.

■ ️Conversion from general video to DICOM (import)
For example, if a modality only outputs general video files, you can convert these general video files to DICOM files and send them to the server.

■ ️Conversion from DICOM to general video (export)
For example, you can convert DICOM multi-frame images to a general video format for use in healthcare presentations.

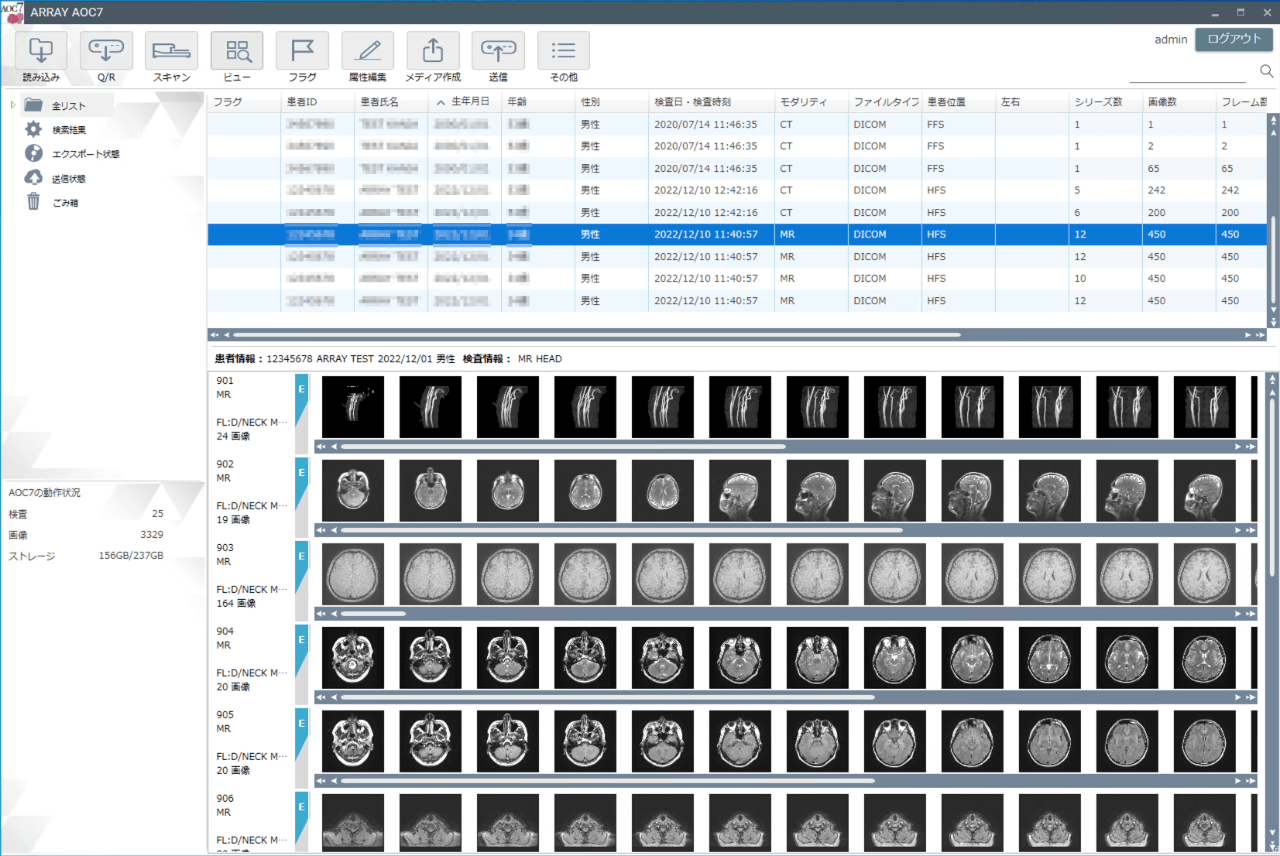

Sophisticated user interface

Experience all the features required now and in the future with a beautifully designed and user-friendly interface.

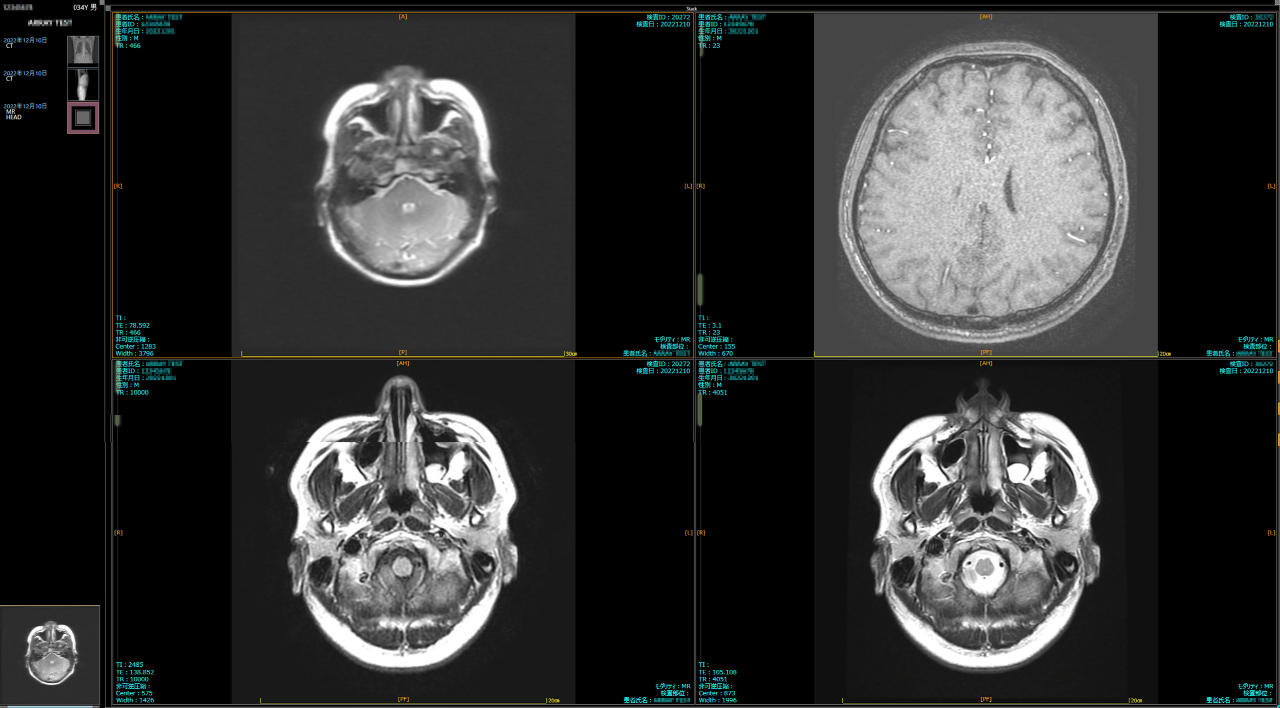

Viewer offers a new experience

The AOC7 viewer, Stackato7, features a large display area for images and offers a user-friendly and modern operation with numerous functions. It comfortably handles large video data displays.

Significant improvement in speed and stability

Compared to previous versions, there has been a significant improvement in both speed and stability. Editing large amounts of data is now seamless and stress-free.

• Manage DICOM images in a local database
• View DICOM images
• Import CD/DVD images (optional)
• Import film images (optional)
• Create CDs/DVDs with an IHE-PDI-compliant viewer (optional)
• Create CDs/DVDs from a web browser (optional)
• Video file viewer (optional)
• Convert video files to DICOM files (optional)
• Convert DICOM files to video files (optional)
• Manage user functions
• Encrypt data
• Anonymize data

Optional

AOC Scan

This option allows you to scan using an array laser film digitizer and register the images with AOC. You can also print scanned film images to a DICOM imager to create duplicates.

Worklist

By querying and retrieving examination information from a DICOM worklist server, you can easily switch the examination information of images with simple operations.

CD/DVD creation

Write images managed by AOC7 to a CD/DVD along with a viewer. Even on computers where the viewer is not installed, you can open the images using the viewer included on the CD/DVD.

CD/DVD labels

Create labels for CDs/DVDs made with the CD/DVD creation option.

DICOM image receiving (Storage SCP)

Receive image data sent from clients, such as modalities or viewers, via a DICOM connection.

Rimage

Create CDs/DVDs using Rimage’s disk publisher.

Epson Discproducer

Create CDs/DVDs using Epson’s Discproducer™.

Primera

Create CDs/DVDs using Primera’s disk publisher.

Media importer function

Import and register DICOM and non-DICOM image files from any directory into AOC7. If using the Rimage option, you can import and register files using Rimage’s Healthcare Disc System™.

Preludio

Efficiently read images from CDs/DVDs or any directory and send them to PACS with simple operations, achieving even greater efficiency than the Media Importer Function option.

IRWF

Save pre-edited data and change history in a format compliant with IHE’s IRWF.

MPPS

MPPS is a DICOM standard service that communicates the progress of examinations. It is used when an MPPS server receives information about the start, ongoing, completion, or cancellation of an examination. AOC7 includes a function (MPPS SCU) to send examination progress to an MPPS server.

Storage Commitment

Confirm whether images sent to a DICOM image server have been stored on the server. This is only effective when the IRWF option is enabled.

web Export

Use a browser to connect to AOC7 from a PC that does not have AOC7 installed. This allows you to search for image data and issue CD/DVD creation instructions.

Video

Import and register video files in AOC7. Registered video files can be converted to DICOM multi-frame images and sent to PACS. Additionally, DICOM multi-frame images can be output as video files.

OS	Windows 11 Pro or higher Windows 10 Pro or higher (64-bit version)
CPU	Intel Core i5-4690K or equivalent
Memory	8 GB or more
Storage	250 GB or more of free space (depending on the amount of data to be stored)
USB ports	One or more available
Display	Display capable of at least 1280×1024 pixels
